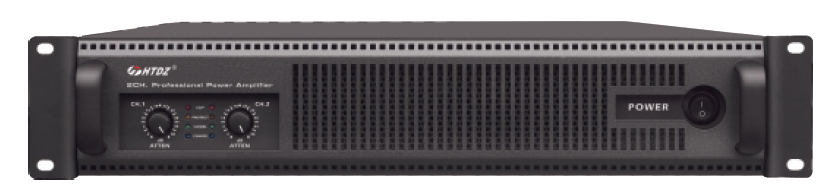

Professional Amplifier

  • 6CH Professional Amplifier
    HT-P300/400
  • 6CH Professional Amplifier
    HT-P600
Inquiry
  • 2-channel, parallel or bridged, mono operating modes for flexible application.
  • Independent limiters for each channel offer dependable protection against distortion.
  • Precise signal and clip LED indicators to monitor performance.
  • High-current toroidal transformer for absolute reliability and lowest noise emission.
  • Independent DC and thermal overheat protection one each channel automatically protects amplifier and speakers.
  • “Back-to front” ventilation system including air filler will automatically adjust fan speed for smooth operation.
  • Balanced XLR and 1/4” TRS inputs.
  • Professional connectors compatible to speakON and “touch –proof” binding post loudspeaker outputs enable secure operation.
Model No. HT-P300 HT-P400 HT-P600
Input Power AC 220V 50~60Hz AC 220V 50~60Hz AC 220V 50~60Hz
Input Sensitivity/ Impedance 500mv/20K Ohm 500mv/22K Ohm 500mv/20K Ohm
Output Consumption 8 Ohm 2×300W 2×400W 2×600W
4 Ohm 2×500W 2×600W 2×800W
Bridge 8 Ohm 800W 900W 1500W
Frequency Response 20Hz-20KHz 20Hz-20KHz 20Hz-20KHz
S/N ratio >90dB >90dB >90dB
T.H.D. < 0.05% < 0.05% < 0.05%
Channel Crosstalk  <-70dB <-70dB <-70dB
Channel Impedance 4~16 Ohm 4~16 Ohm 4~16 Ohm
N.W. 14.2kg 15.8kg 18.5kg
6CH Professional AmplifierHT-P200/P350/P450/P650
MODEL NUMBER HT-P200 HT-P350 HT-P450 HT-P650
Input sensitivity/impedance 500mv/20KΩ 500mv/22KΩ 500mv/20KΩ 500mv/22KΩ
Output consumption 8Ohm 2 X 200W 2 X 350W 2 X 450W 2 X 650W
4Ohm 2 X 350W 2 X 550W 2 X 650W 2 X 850W
Bridged 8Ohm 600W 850W 1050W 1550W
Frequency response 20Hz-20KHz 20Hz-20KHz 20Hz-20KHz 20Hz-20KHz
S/N ratio >90dB >90dB >90dB >90dB
T.H.D. < 0.05% < 0.05% < 0.05% < 0.05%
Channel Crosstalk <-70dB <-70dB <-70dB <-70dB
Output impedance 4~16Ω 4~16Ω 4~16Ω 4~16Ω
N.W. 12kg 13kg 16kg 19kg
6CH Professional AmplifierHT-P200/P350/P450/P650
MODEL NUMBER HT-M200 HT-M300 HT-M450 HT-M600 HT-M800 HT-M1000 HT-M1200 HT-M1500
Output Consumption 80 2x200W 2x300W 2x450W 2x600W 2x800W 2x1000W 2x1200W 2x1500\A
Output Consumption 4Q 2x300W 2x450W 2x675W 2x900W 2x1200W 2x1500W 2x1800W 2x2250V
Output Consumption 80 (Bridged) 600W 900W 1350W 1800W 2400W 3000W 3600W 4500W
Frequency Response 20Hz〜20kHz(±0.5%}
T.H.D (8Q/1 KHz) < 0.5%(20Hz~20kHz)
Switching Rate 10V/MS
Damping coefficient(8Q/10~400Hz) >200dB
Input Sensitivity 0.77V, 1.4Vf32dB
Input Impedance UNBAL 10KΩ/BAL20KΩ
Voltage Gain (80/1 KHz) 33dB/36dB/39dB/41dB
Cormector lnput:XLR(Mx2+Fx2); Output:SpeakON x2; PK-BFAx4
S/N Ratio ≥100 dB
Protection and cooling Returned switch(ss);DC fault disconnect;Active inrush limiting;Short/Open circuit, RF overload and overheating protection
Dimension (mm) 483mmx88.9mmx482mm
N.W 10kg 10.5kg 11kg 12kg 14kg 16kg 18kg 20kg
