UHF Wireless Conference System

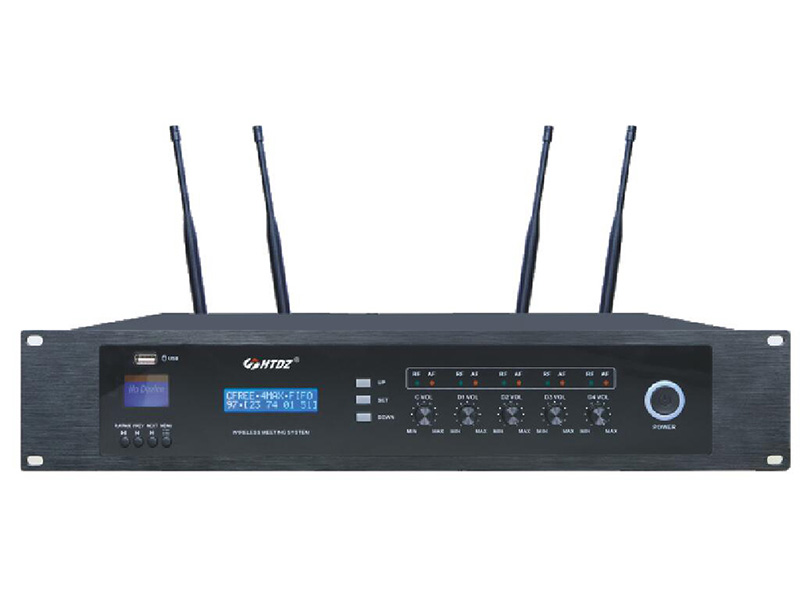

UHF Wireless Meeting System Receiver Unit HT-2288R

  • UHF Wireless Meeting System Receiver Unit HT-2288R
    HT-2288R
Inquiry
  • Support 256 microphones in one system with video tracking function and 1000 microphones only for discuss.
  • Maximum 16 sets system can be installed in one place.
  • Maximum 5 microphones can be on at the same time, support mode: Limit (1/2/3/4), FIFO (1/2/3/4), Chairman Only.
  • Support video camera auto-track with video processor.
  • 160x32 dot matrix LCD display system information.
  • Built-in USB recording module.

UHF Wireless Meeting System Receiver Unit HT-3388R

  • UHF Wireless Meeting System Receiver Unit HT-3388R
    HT-3388R
Inquiry
Technical Parameter
  • Dante-enabled Products DCN-2288R (Option).
  • Support 256 microphones in one system with video tracking function and 1000 microphones only for discuss.
  • Maximum 16 sets system can be installed in one place Maximum 5 microphones can be on at the same time. support mode: Limit (1/2/3/4)，FIFO (1/2/3/4), Chairman Only.
  • Support video camera auto-track with video processor. 160x32 dot matrix LCD display system information.
  • Built-in USB recording module.
  • Dante-enabled Products DCN-3388R (Option).

UHF Wireless Meeting System Microphone Unit HT-2288c/d, HT-2288Nc/d, HT-2299c/d

  • UHF Wireless Meeting System Microphone Unit HT-2288c/d, HT-2288Nc/d, HT-2299c/d
    HT-2288c Chairman Unit HT-2288d Delegate Unit
  • UHF Wireless Meeting System Microphone Unit HT-2288c/d, HT-2288Nc/d, HT-2299c/d
    HT-2288Nc Chairman Unit HT-2288Nd Delegate Unit
  • UHF Wireless Meeting System Microphone Unit HT-2288c/d, HT-2288Nc/d, HT-2299c/d
    HT-2299c Chairman Unit HT-2299d Delegate unit
Inquiry
  • Portable table moving, gooseneck microphone can be pulled out.
  • LCD display microphone ID, battery level, microphone state, control channel，etc.
  • Equipped with microphone on/off key and indicator.
  • Equipped with 3 function keys to set microphone id, control channel, volume level and battery status.
  • AA battery or rechargeable battery pack for option.

UHT Wireless Meeting System Microphone Unit HT-3388c, HT-3388d

  • Conference Microphone Unit HB-250c/d
    HT-3388c Chairman Unit HT-3388d Delegate Unit
Inquiry
Technical Parameter
  • Portable table moving, gooseneck microphone can be pulled out.
  • LCD display microphone ID, battery level, microphone state, control channel, etc.
  • Equipped with microphone on/off key and indicator.
  • Equipped with 3 function keys to set microphone id, control channel, volume level and battery status.
  • Built-in monitoring loudspeaker, earphone jack and directly charging interface.
  • Equipped with LIP battery

Battery Charger

  • Battery Charger
    HT-2288B/08
  • Battery Charger
    HT-2288B/16
  • Battery Charger
    HT-3388B
Inquiry
  • Used for charging microphone rechargeable battery pack.
  • High efficiency switch mode.
  • The charging electronics and a charging indicator LED are integrated in each battery.
  • The charging circuitry checks if a battery is present and controls the charging process receivers per charging.
  • Charges 16 PCS (HT-2288B/16)/8PCS (HT-2288B/08) batteries per charging (for HT-2288c/d, HT-2288Nc/Nd, HT-2299c/d microphone battery).
  • Charges 16 PCS (HT-3388B) batteries per charging (for HT- 3388c/d microphone).
Technical Parameter
Receiver
  • Carrier Frequency: 610.00MHz - 664.75MHz
  • Audio Channel: 5 (1 Chairman + 4 Delegate)
  • Data Channel: 16
  • Frequency response: 50Hz-15KHz
  • Power Supply: DC 12V 800mA
  • Consumption Rating: 7W
  • Dimension: 484 x 355 x 88 mm, 2 U rack 19
Microphone
  • Carrier Frequency: 610.00MHz-664.75MHz
  • Frequency response: 50Hz-15KHz
  • Power Supply:
    HT-2288c/d, HT-2288Nc/Nd, HT-2299c/d: DC3.7V or 3 x AA battery; HT-3388c/d: DC12V
Battery Charger
  • Power Supply: 110V-240V/50Hz~60Hz
  • MAX charging current of each unit: 700mA
  • Charging status: Red LED flashing-charging; green LED-full charged
  • Dimensions & N.W: HT-2288B/08:400x380x150mm
  • HT-2288B/16:620x370x175mm, 9kg
  • HT-3388B: 620><370x260mm, 10.74kg
Ordering Information
  • HT-2288R--Wireless Meeting Receiver
  • DCN-2288R--Wireless Meeting Receiver (Dante)
  • HT-2288c/HT-2288Nc/HT-2299c--Chairman Microphone
  • HT-2288d/HT-2288Nd/HT-2299d--Delegate Microphone
  • HT-2288B/08--Battery Charger
  • HT-2288B/16-- Battery Charger
  • IRC14430 -- Rechargeable Battery Pack
  • HT-3388R -- Wireless Meeting Receiver
  • DCN-3388R -- Wireless Meeting Receiver (Dante)
  • HT-3388c -- Chairman Microphone
  • HT-3388d -- Delegate Microphone
  • HT-3388B -- Battery Charger
  • HT-LIP1 -- LIP Battery
  • HT-DC18V -- Power Adapter
  • HT-2288S -- Video Processor (SD)
  • HT-3288S --Video Processor (HD)
