CONFERENCE & DISCUSSION SYSTEMS

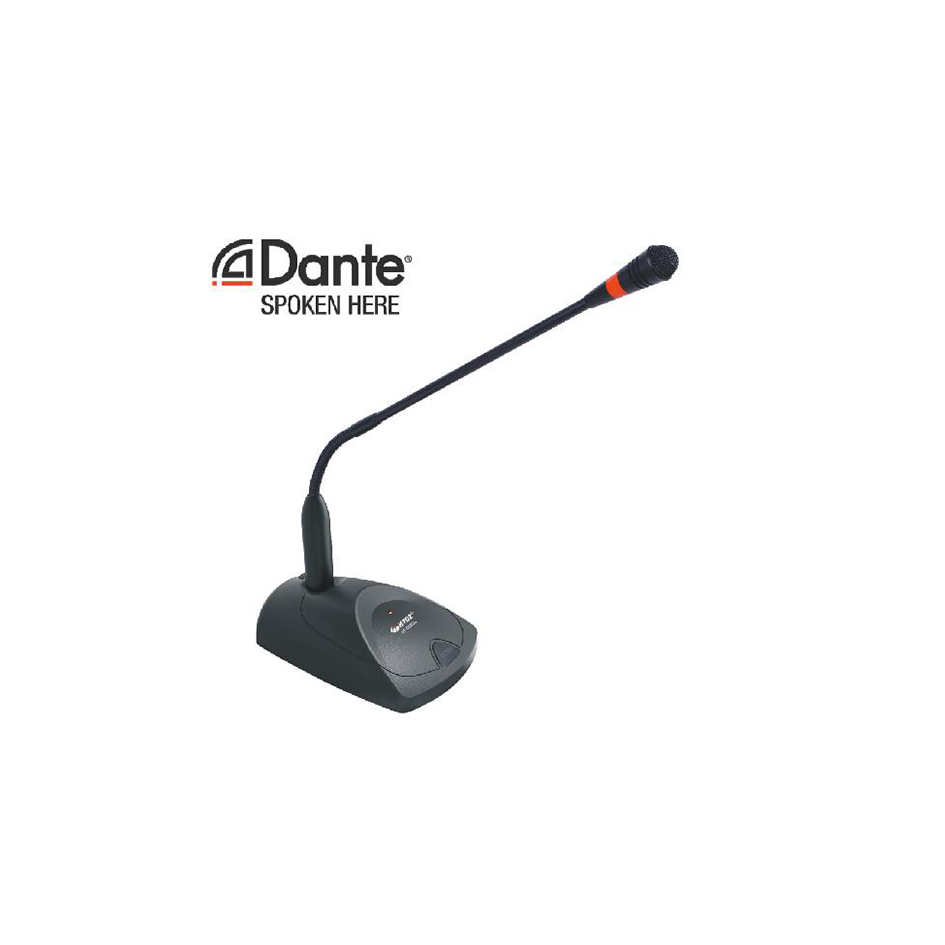

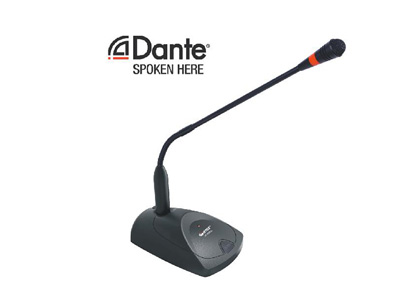

Dante series products, using an audio over Ethernet technology, allows the delivery of uncompressed, multichannel, and low- latency digital audio simultaneously.
Meanwhile, instead of heavy and expensive analog routing and multi-core processor routing, only one piece of Cat5e，Cat6 Ethernet or optical cable, affordable for everyone and familiar in everywhere, is required in the system. Both media and controlling unit from your system are integrated together in a standard IP internet with the help of our Dante network system.
| Model No. | HT-D63 | HT-D66 | HT-X1/01 |
| Capsule Type | Condenser | Condenser | Condenser |
| Frequency Response | 30Hz-20kHz | 30Hz-20kHz | 20Hz-20kHz |
| Polar Pattern | Cardioid | Cardioid | Hypercardioid |
| Output Impedance (Ohm) | 75-Balanced, | 75-Balanced, | 75-Balanced |
| Sensitivity (±2dB) | -42dB | -42dB | -36dB |
| S/N | 65dB | 65dB | 85dB |
| Max SPL | 128dB | 128dB | 149dB |
| Power Supply | DC3V/Phantom 48V | DC3V/Phantom 48V | Phantom 48V |
| Mic Length (mm) | 390 | 390 | / |
| N.W. | 0.6kg | 0.6kg | 0.6kg |
| Base Dimension (mm) | 114 x168 x 57 | 116 x 145 x46 | / |
| Model | SM-88 | HT-32 | HT-35A | HT-38 |
| Capsule Type | Condenser | Dynamic | Condenser | Condenser |
| Frequency Response | 40Hz-16KHz | 60Hz-16KHz | 100Hz-16KHz | 100Hz-16KHz |
| Polar Pattern | Cardioid | Cardioid | Cardioid | Cardioid |
| Output Impedance (Ohm) | 200 - Unbalanced | 600 - Balanced | 200 - Unbalanced | 200 - Unbalanced |
| Sensitivity (±2dB) | -42dB | -52dB | -42dB | -42dB |
| Power Supply | DC3V | DC3V | DC3V | |
| Mic Length (mm) | 415 | 483 | 415 | 415 |
| N.W. | 0.41kg | 1.08kg | 0.62kg | 0.62kg |
| Base Dimension (mm) | 125x134x38 | Diameter 130 | 110x130x34 | 110x130x34 |
| Indicator | Base Indicator | Base Indicator | Base Indicator | Base Indicator |
| Model No. | HT-D30 | HT-D31 | HT-D32 | HT-D35 |
| Capsule Type | Condenser | Condenser | Condenser | Condenser |
| Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
| Polar Pattern | Hypercardioid | Hypercardioid | Hypercardioid | Hypercardioid |
| Output Impedance (Ohm) | 200 - Unbalanced | 200 - Unbalanced | 200 - Unbalanced | 200 - Unbalanced |
| Sensitivity (±2dB) | -40dB | -40dB | -40dB | -40dB |
| Power Supply | DC3V | DC3V | DC3V | DC3V |
| Mic Length (mm) | 430 | 430 | 430 | 465 |
| N.W. | 0.65kg | 0.64kg | 0.62kg | 0.45kg |
| Base Dimension (mm) | 110x130x34 | 110x130x34 | 102x130x40 | 100x155x35 |
| Indicator | Base Indicator/Mic LED | Base Indicato r/Mic LED | Base Indicato r/Mic LED | Base Indicato r/Mic LED |
| Model No. | HT-D38 | HT-D39 | HT-D48 | HT-260 |
| Capsule Type | Condenser | Condenser | Condenser | Condenser |
| Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 20Hz-18kHz | 100Hz-16kHz |
| Polar Pattern | Hypercardioid | Cardioid | Cardioid | Cardioid |
| Output Impedance (Ohm) | 75 Unbalanced | 200 - Unbalanced | 75 - Balanced | 200 - Unbalanced |
| Sensitivity (±2dB) | -40dB | -40dB | -40dB | -42dB |
| Power Supply | Phantom 48V/DC3V | DC3V | Phantom 48V/DC3V | DC3V |
| Mic Length (mm) | 445 | 430 | 410 | 450 |
| N.W. | 0.73kg | 0.58kg | 0.78kg | 0.64kg |
| Base Dimension (mm) | 115x140x30 | 125x135x41 | 114x140x37 | 102x130x40 |
| Indicator | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator |
| Model No. | HT-D62 | HT-33 (Chime) | HT-33A (Chime) | HT-33B (Chime) |
| Capsule Type | Gondons6 | Gondons6 | Gondons6 | Gondons6 |
| Frequency Response | 20Hz-20kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
| Polar Pattern | Cardioid | Cardioid | Cardioid | Cardioid |
| Output Impedance (Ohm) | 200 - Balanced | 200 - Unbalanced | 200 - Unbalanced | 200 - Unbalanced |
| Sensitivity (±2dB) | -42dB | -45dB | -38dB | -38dB |
| Power Supply | Phantom 48V/DC 3V | DC9V/AC 220V | DC9V | DC9V/AC 220V |
| Mic Length (mm) | 390 | 390 | 420 | 420 |
| N.W. | 0.6kg | 0.72 | 0.67kg | 0.67kg |
| Base Dimension (mm) | 114x160x57 | 183x112x43 | 126x150x39 | 126x150x39 |
| Indicator | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator/Mic LED |
| Model No. | HT-280 | HT-333 (Auto-on/off) | HT-709 | HT-737 |
| Capsule Type | Condenser | Condenser | Condenser | Condenser |
| Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
| Polar Pattern | Cardioid | Hypercardioid | Cardioid | Cardioid |
| Output Impedance (Ohm) | 200 - Unbalanced | 200 - Unbalanced | 200 - Balanced | 200 - Unbalanced |
| Sensitivity (±2dB) | -38dB | -38dB | -40dB | -38dB |
| Power Supply | DC3V | Phantom 48V/DC9V | Phantom 48V/DC9V | DC3V |
| Mic Length (mm) | 460 | 310 | 460 | 410 |
| N.W. | 0.66kg | 0.74kg | 0.88kg | 0.67kg |
| Base Dimension (mm) | 102x130x40 | 183x112x43 | 110x150x33 | 126x150x39 |
| Indicator | Base Indicator | Base Indicator/M ic LED | Base Indicator | Base Indicator |
| Model No. | HT-747 | HT-767 | HT-787 | HT-797 |
| Capsule Type | Gondonsor | Oondonsor | Oondonsor | Oondonsor |
| Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
| Polar Pattern | Hypercardioid | Cardioid | Cardioid | Cardioid |
| Output Impedance (Ohm) | 200 - Unbalanced | 200 - Balanced | 200 - Balanced | 200- Balanced |
| Sensitivity (±2dB) | -38dB | -38dB | -38dB | -38dB |
| Power Supply | DC9V | Phantom 48V/DC3V | Phantom 48V | Phantom 48V |
| Mic Length (mm) | 400 | 470 | 435 | 390 |
| N.W. | 0.67kg | 0.65kg | 1.47kg | 1.50kg |
| Base Dimension (mm) | 126x150x39 | 110x150x33 | 126x155x33 | 112x161x29 |
| Indicator | Base Indicator | Base Indicator | Base Indicator | Base Indicator/Mic LED |

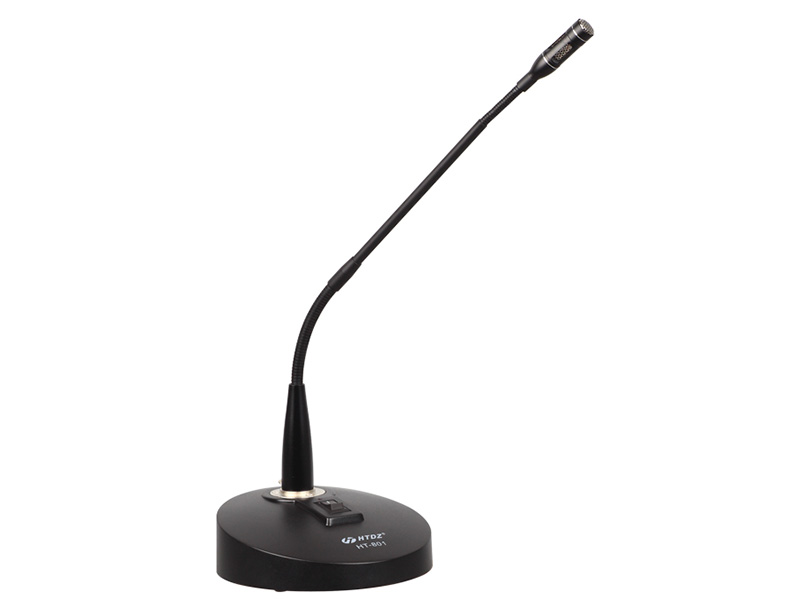

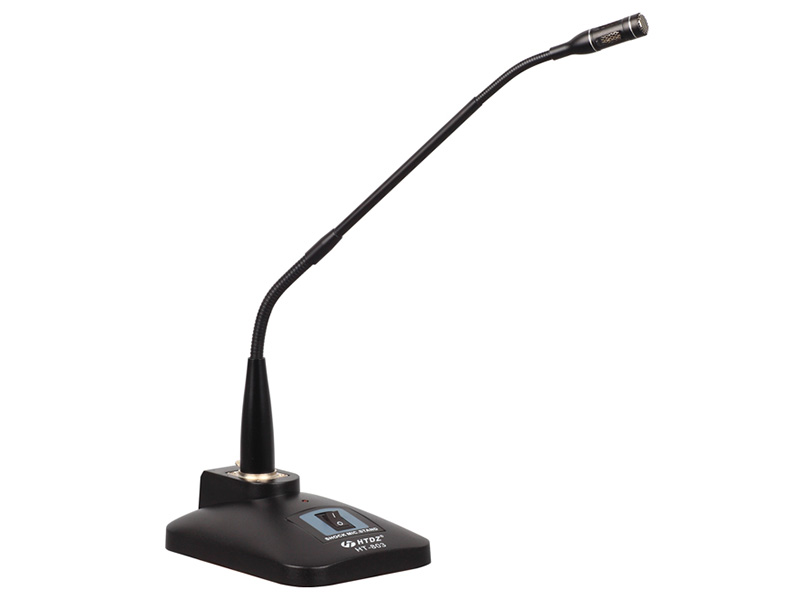

| Model | HT-801 | HT-802 | HT-803 | HT-805 |
| Capsule Type | Condenser | Condenser | Condenser | Condenser |
| Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz | 40Hz-16kHz |
| Polar Pattern | Cardioid | Cardioid | Cardioid | Cardioid |
| Output Impedance (Ohm) | 200 - Unbalanced | 200 - Unbalanced | 200 - Unbalanced | 200 - Unbalanced |
| Sensitivity (±2dB) | -38dB | -38dB | -38dB | -38dB |
| Power Supply | DC3V | DC3V | DC3V | DC3V |
| Mic Length (mm) | 405 | 410 | 410 | 380 |
| N.W. | 0.79kg | 0.79kg | 0.70kg | 0.78kg |
| Base Dimension (mm) | 140x141x39 | 140x141x39 | 110x146x28 | 140x141x39 |
| Indicator | Base Indicator | Base Indicator/Mic LED | Base Indicator | Base Indicator |
| Model No. | HT-806 | HT-808 | HT-809 | HT-909 |
| Capsule Type | Condenser | Condenser | Condenser | Condenser |
| Frequency Response | 40Hz-16kHz | 40Hz-16kHz | 20Hz-20kHz | 20Hz-20kHz |
| Polar Pattern | Cardioid | Hypercardioid | Cardioid | Hypercardioid |
| Output Impedance (Ohm) | 200- Balanced | 200- Balanced | 75-Balanced | 75-Balanced |
| Sensitivity (±2dB) | -38dB | -38dB | -40dB | -40dB |
| Power Supply | Phantom 48V/DC9V | Phantom 48V/DC9V | Phantom 48V/DC3V | Phantom 48V/DC9V |
| Mic Length (mm) | 415 | 430 | 445 | 440 |
| N.W. | 1.53kg | 0.68kg | 0.69kg | 0.81kg |
| Base Dimension (mm) | 130x155x36 | 130x145x40 | 103x155x32 | 100x144x38 |
| Indicator | Mic LED | Mic LED | Base Indicator/Mic LED | Base Indicator |
| Model No. | HT-28 | HT-D68 | HT-757 | HT-300 |
| Capsule Type | Condenser | Condenser | Condenser | Condenser |
| Frequency Response | 30Hz-20kHz | 20Hz-20kHz | 40Hz-16kHz | 40Hz-16kHz |
| Polar Pattern | Uni-Directional | Cardioid | Hypercardioid | Hypercardioid |
| Output Impedance (Ohm) | 75 - Balanced | 200 -Balanced | 200 - Unbalanced | 75 - Unbalanced |
| Sensitivity (±2dB) | -45dB | -42dB | -38dB | -40dB |
| Power Supply | Phantom 48V | Phantom 48V/DC3V | DC9V | Phantom 48V |
| Mic Length (mm) | 455 | 390 | 400 | 390 |
| N.W. | 1.10kg | 0.6kg | 0.67kg | 0.73kg |
| Base Dimension (mm) | 115^138x40 | 116x145x46 | 126x150x39 | 130x55x102 |
| Indicator | Base Indicator/Mic LED | Base Indicator/Mic LED | Base Indicator | Base Indicator/Mic LED |
| Model | HT-930 | HT-931 | HT-940 | HT-941 |
| Capsule Type | Condenser | Condenser | Condenser | Condenser |
| Frequency Response | 40Hz-18kHz | 30Hz-20kHz | 40Hz-18kHz | 40Hz-18kHz |
| Polar Pattern | Hypercardioid | Hypercardioid | Hypercardioid | Hypercardioid |
| Output Impedance (Ohm) | 75 - Balanced | 75 - Balanced | 75 - Balanced | 75 - Balanced |
| Sensitivity (±2dB) | -45dB | -45dB | -45dB | -45dB |
| Power Supply | Phantom 48V | Phantom 48V | Phantom 48V | Phantom 48V |
| Mic Length (mm) | 200 | 200 | 200 | 200 |
| N.W. | 0.63kg | 0.65kg | 0.63kg | 0.65kg |
| Max Input Level | 135dB | 138dB | 128dB | 128dB |
| Base Dimension(mm) | 78x104x34 | 78x104x34 | 81x110x36 | 81x110x36 |
| Indicator | Base Indicator | Base Indicator | Base Indicator | Base Indicator |
| Model No. | HT-910 | HT-920 | HT-942 |
| Capsule Type | Condenser | Condenser | Condenser |
| Frequency Response | 30Hz-20kHz | 30Hz-20kHz | 40Hz-18kHz |
| Polar Pattern | Uni-directional | Uni-directional | Uni-directional |
| Output Impedance (Ohm) | 75 - Balanced | 75 - Balanced | 75 - Balanced |
| Sensitivity (±2dB) | -45dB | -45dB | -45dB |
| Power Supply | Phantom 48V/DC3V | Phantom 48V | Phantom 48V |
| M ic Length (m m ) | 280 | 410 | 300 |
| N.W. | 0.87kg | 1kg | 0.6kg |
| Max Input Level | 126dB | 128dB | 128dB |
| Base Dimension (mm) | 94x143x44 | 95x138x40 | 81x110x36 |
| Indicator | Base Indicator | Base Indicator/Mic LED | Base Indicator |
| Model No. | HT-77L | HT-78L | HT-79L / HT-79H |
| Capsule Type | Condenser | Condenser | Dual-Condenser |
| Frequency Response | 30Hz-16kHz | 30Hz-16kHz | 30Hz-18kHz |
| Polar Pattern | Hypercardioid | Hypercardioid | Hypercardioid |
| Output Impedance(Ohm) | 75-Balanced, | 75-Balanced, | 75-Balanced, |
| 200-Unbalanced | 200-Unbalanced | 200-Unbalanced | |
| Sensitivity (±2dB) | -43dB | -43dB | -43dB |
| Power Supply | Phantom 48V | Phantom 48V | Phantom 48V |
