Based on digital control technologies, HT-9500 series fully digital conference system is flexible and reliable for any conference of mini/medium/large meeting. The system features include: microphone management, automatic video tracking, conference audio recording, voting, etc.
HT-9500 series fully digital conference system is also provided with function that to access and control main unit through software, thus the operator can easily manage and control the conference proceedings.
Other peripheral devices like computers, touch panels, projectors and loudspeakers can also be integrated with HT-9500 series fully digital conference system.
The conference main unit forms the core of the entire conference system. It provides power supply to all contribution unit and serves as key component to link system hardware to software control. The CMU adopt DSP techniques such as feedback suppression, noise cancellation, automatic gain, and digital equalization. It's flexible and reliable for any conference of mini/medium/large meeting.
FTP Cat6 cables are introduced for data transmission and power supply, supporting message transmission with a fast internet service 100M. Thus, audio signals could be delivered perfectly in a long distance.
A sampling frequency of 48kHZ is supported by the system.
In order to ensure a clear, highly sensitive, and perfect sound quality, CMU built-in high-performance dual-core CPU, 32 bit high-speed DSP technologies, feedback suppression, noise cancellation, automatic gain, and digital equalization are all available.
Built-in video tracking control and voting processor, high definition switching matrix are available for auto video tracking with HD video matrix.
The CMU owns a built-in USB, allowing the realizing of recording and monitoring.
Different kinds of interfaces, like, Ethernet, RS422 and RS232, could meet requirements towards different devices.
Three modes are available, including REQUEST(1-4),LIMIT (1-4), and FIFO (1-4). They all support speech timing function.
Multiple conference functions could be realized when CMU is connected to computer.
Dante-enabled Products DCN-9500M (Option)
Technical Parameter
Microphone capacity: ≤320
Frequency response: 20Hz-20KHz SNR: >80dB
T.H.D: <0.05%
Power supply: 230V AC 50/60Hz
Audio output: + 18dBu balanced
Output Voltage: 24VDC
Control Interfaced PIN, D-type (Female), connecting the central control system (RS232C)
RJ45 Ethernet, connecting to PC, RS422 connecting to high speed dome camera.

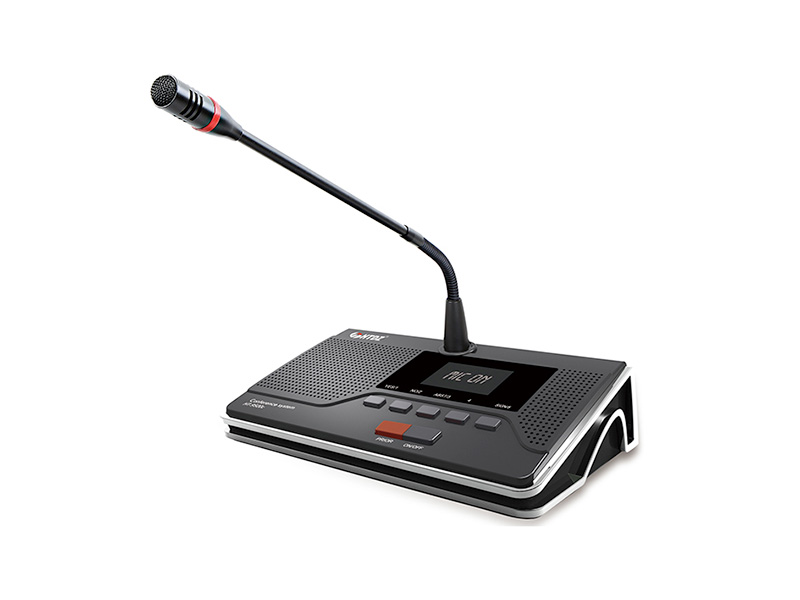

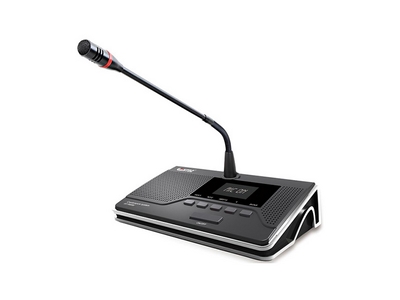

The conference microphone units is the common name to describe the unit used by the attendees to contribute to a conference. The term includes chairman unit and delegate unit
Haitian Electronic Technology Co., Ltd. is a conference equipment manufacturer devoted to the technological innovation and the research & development of digital conference system, interpretation system, voting system, wireless microphone, meeting microphone and a wide variety of conference system products. Our products are applied to various fields. We offer customized products according to our clients' specific needs, as well as OEM service upon request.
